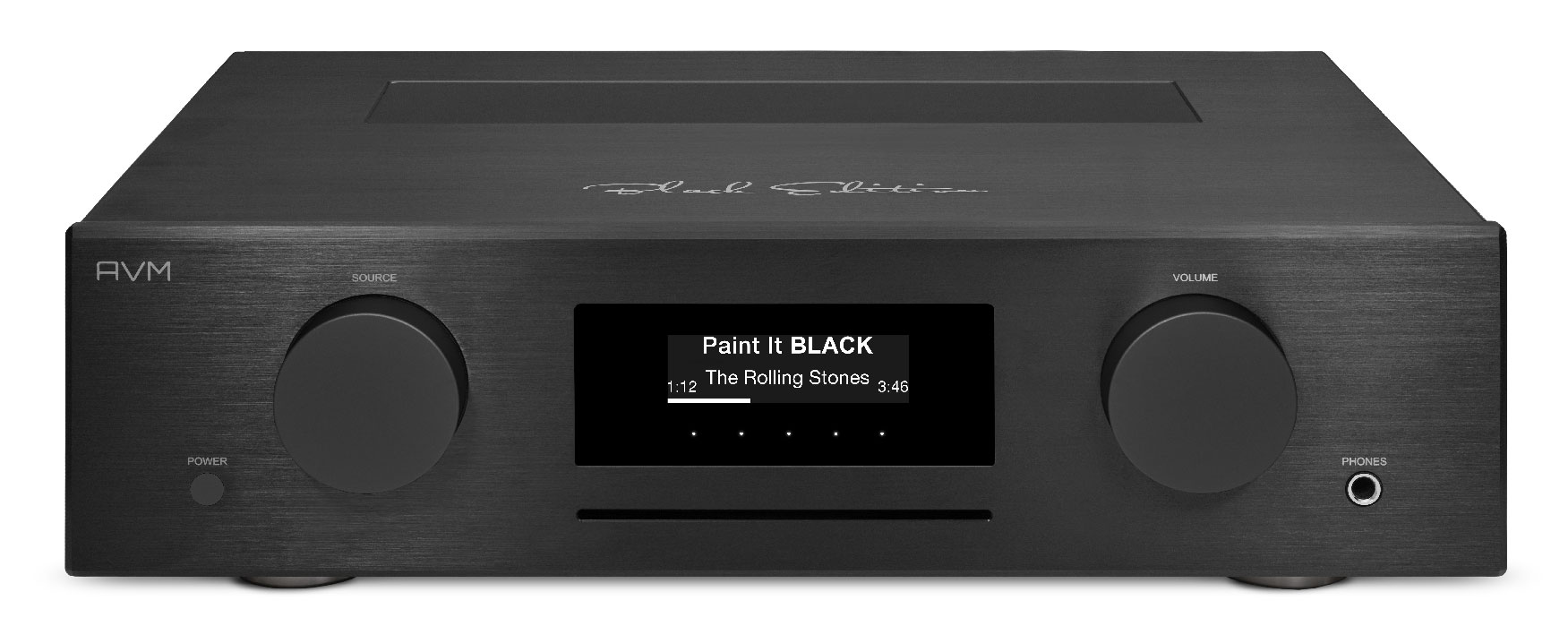

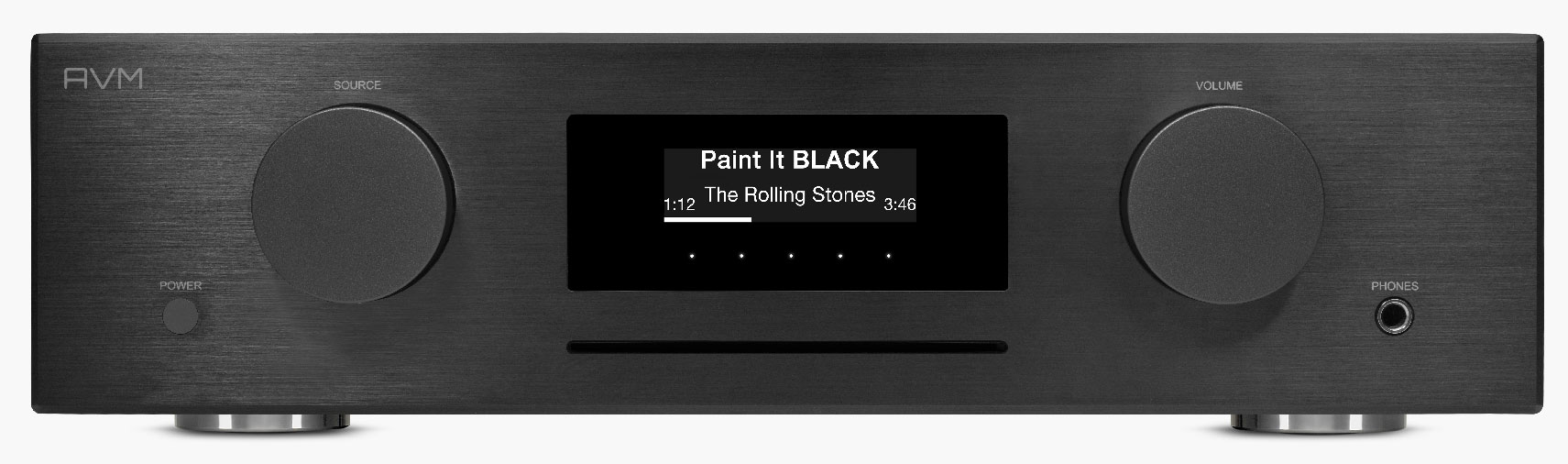

Evolution CS 5.3
Black Edition
All-in-One CD Receiver with Streaming
Evolution CS 5.3
01Overview
More depth.
More precision.
More AVM.
With the Evolution CS 5.3 Black Edition, AVM opens a particularly exclusive opportunity to further refine the sonic performance of the Evolution Line – not only for new units, but also retroactively for existing Evolution CS .3 models.
The upgrade is aimed at music lovers who do not wish to replace their system but to develop it further in a purposeful way: with greater sophistication, higher resolution, and an even more powerful musical and emotional expression.
- Type
- All-in-One CD Receiver with Streaming
- Output power
- 2× 350 W (4 Ω)
2× 180 W (8 Ω) - Line stage
- Black Edition tube board
- Streaming
- DSD256 · 32 Bit / 384 kHz PCM
- Dimensions · weight
- 430 × 122 × 350 mm
11 kg
02Highlights
What makes the
Black Edition
Eight refinements, from the tube board to the top cover – the complete Black Edition package at a glance.
- 01
New Black Edition tube board
Signal-path-optimized, with even more highly selected, ultra-special operational amplifiers, mini-MELF thin-film resistors and black tube sockets.
- 02
New AVM speaker terminals
With rhodium plating and AVM logo imprint (CS and AS only).
- 03
Pure silver internal wiring
- 04

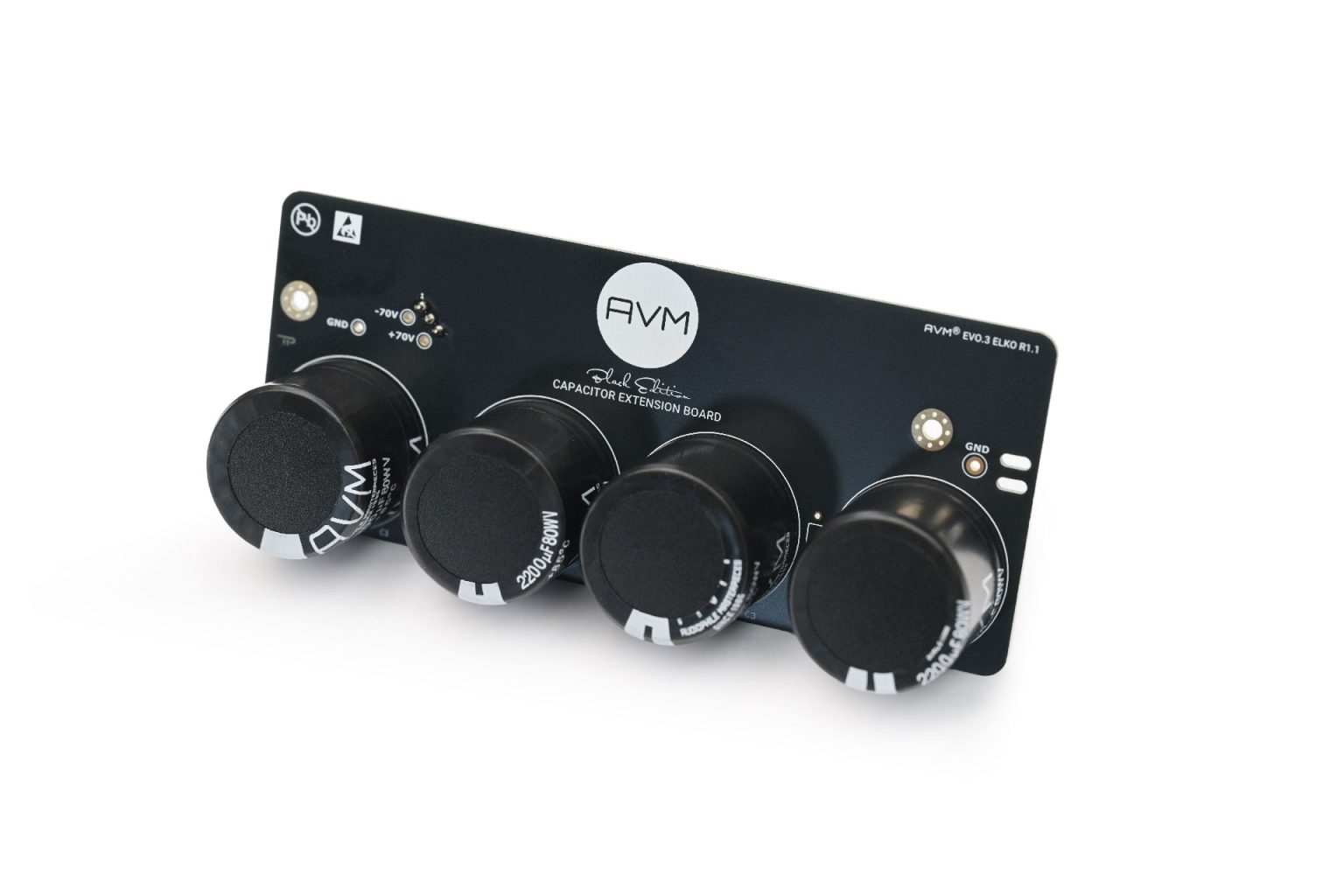

Additional output-stage capacitors
For output stage stabilization: 4 × 2,200 µF AVM capacitors.
- 05
Hand-selected components
Numerous new components in the signal path with extremely tight selection tolerances.
- 06
New output stage generation
- 07
Completely black design

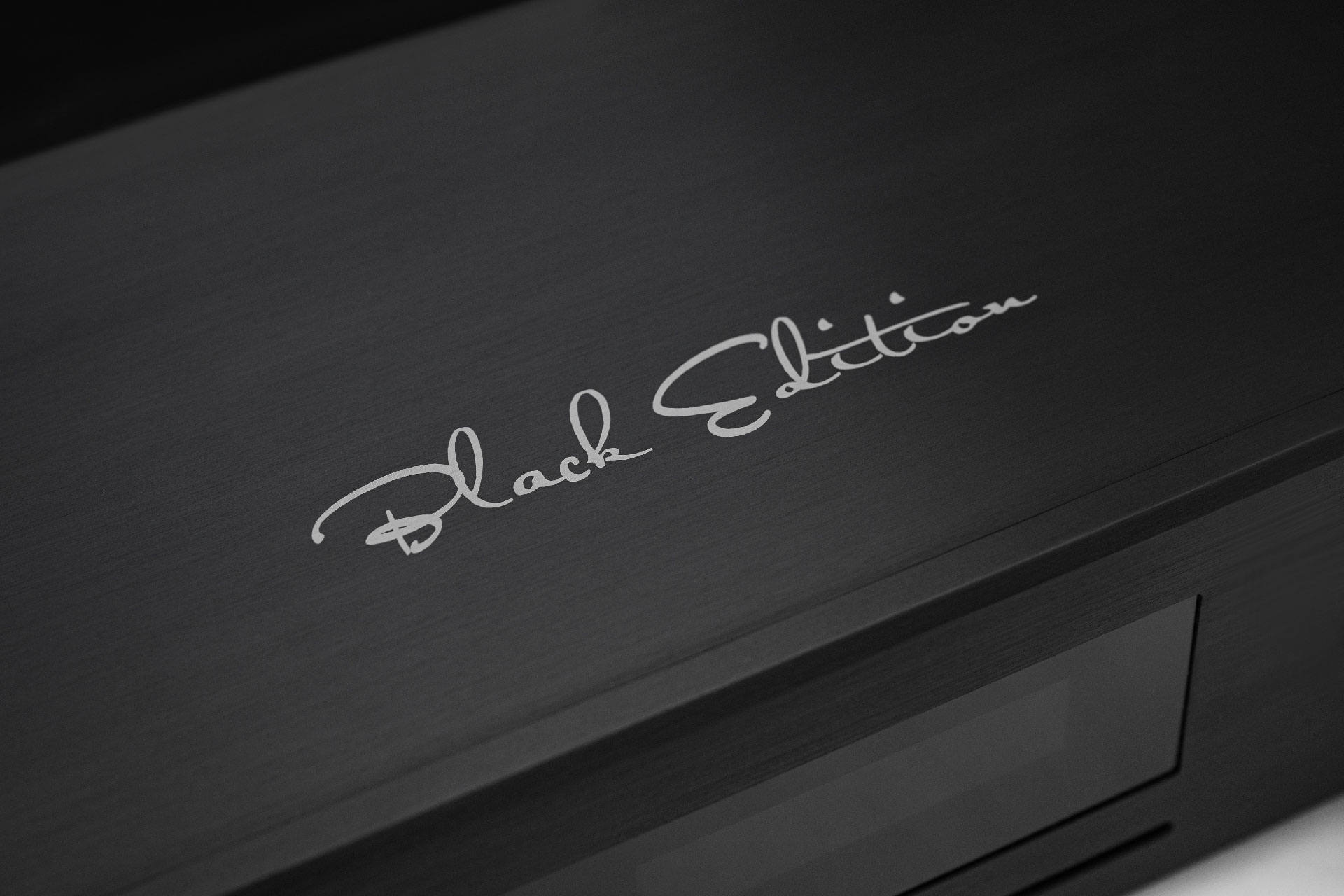

All control elements in black, BLACK EDITION emblem prominently laser-engraved into the top cover.
- 08
Your version
Other versions and colors available upon request.
Greater substance, finer resolution, and a deeper emotional connection to the recording.
CS 5.3 Black Edition
03Technology

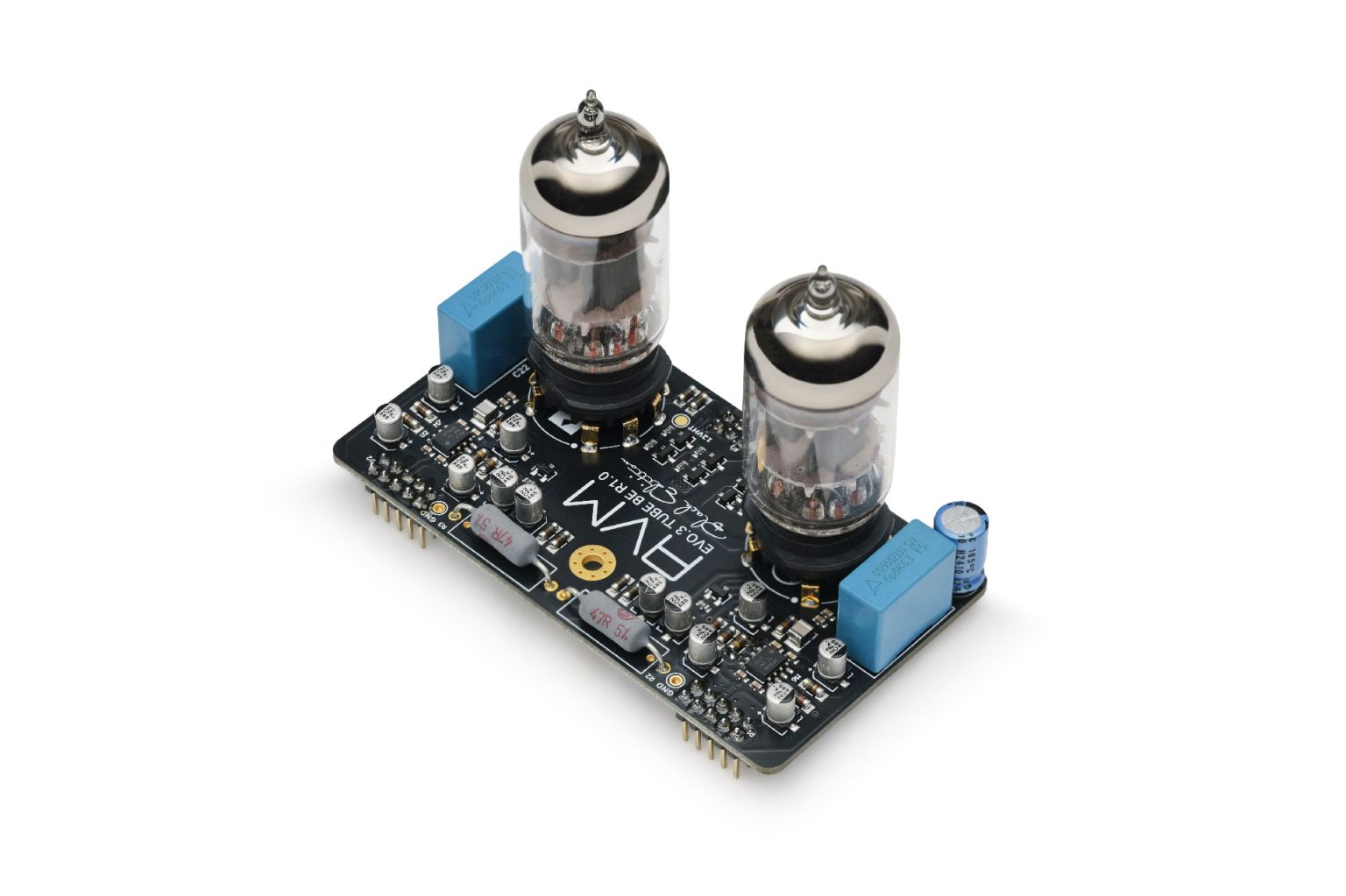

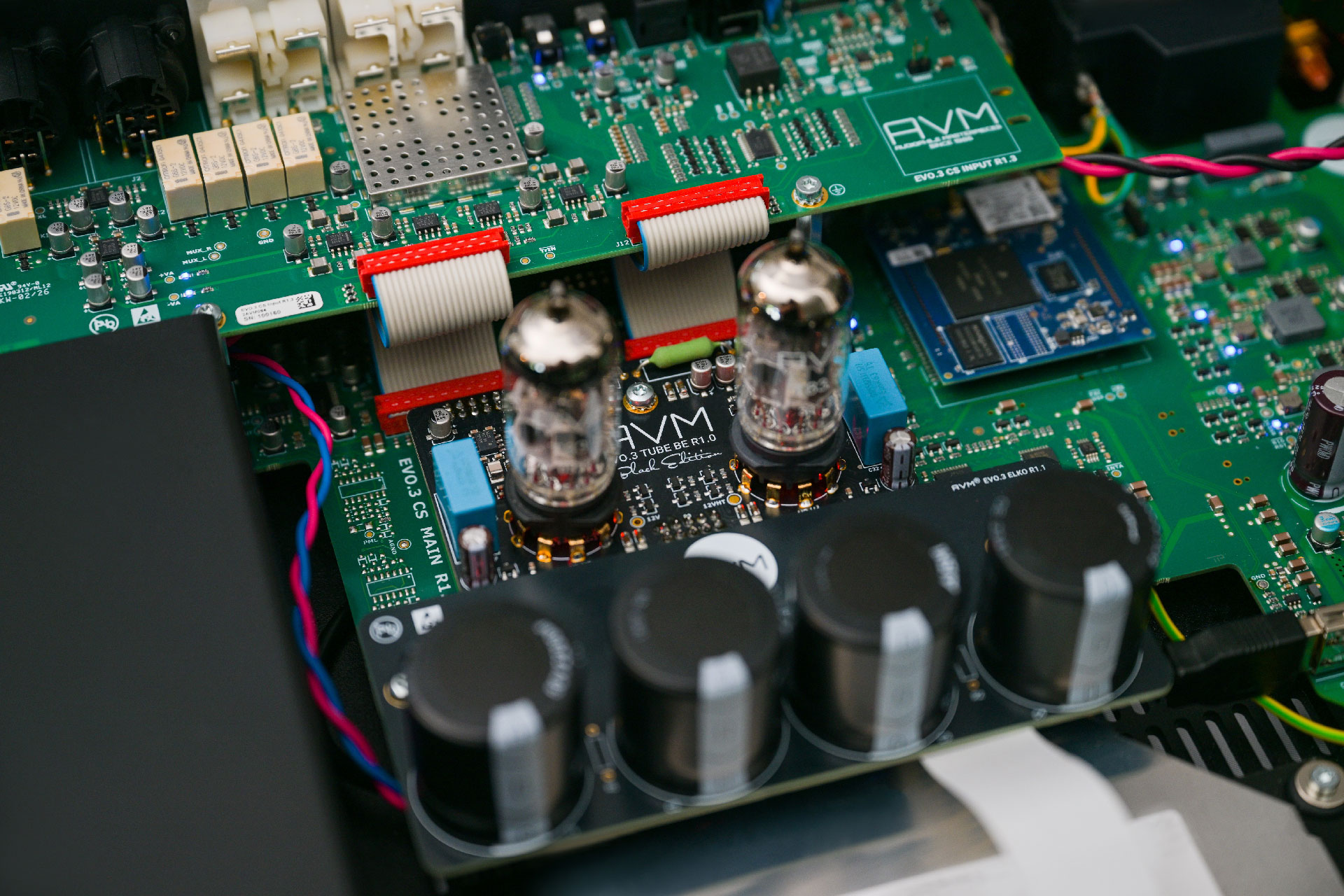

At the Heart: The Black Edition Tube Board
At the core is a newly developed, sonically optimized tube board: refined signal paths, highly selected special operational amplifiers, precision mini-MELF thin-film resistors, and black tube sockets. Especially in the sensitive analog line stage – which amplifies only very slightly, with a factor close to 1:1 – the enormous influence of these details becomes evident: music sounds more natural, more spacious, and even more immediate.
Refinement Down to the Smallest Detail

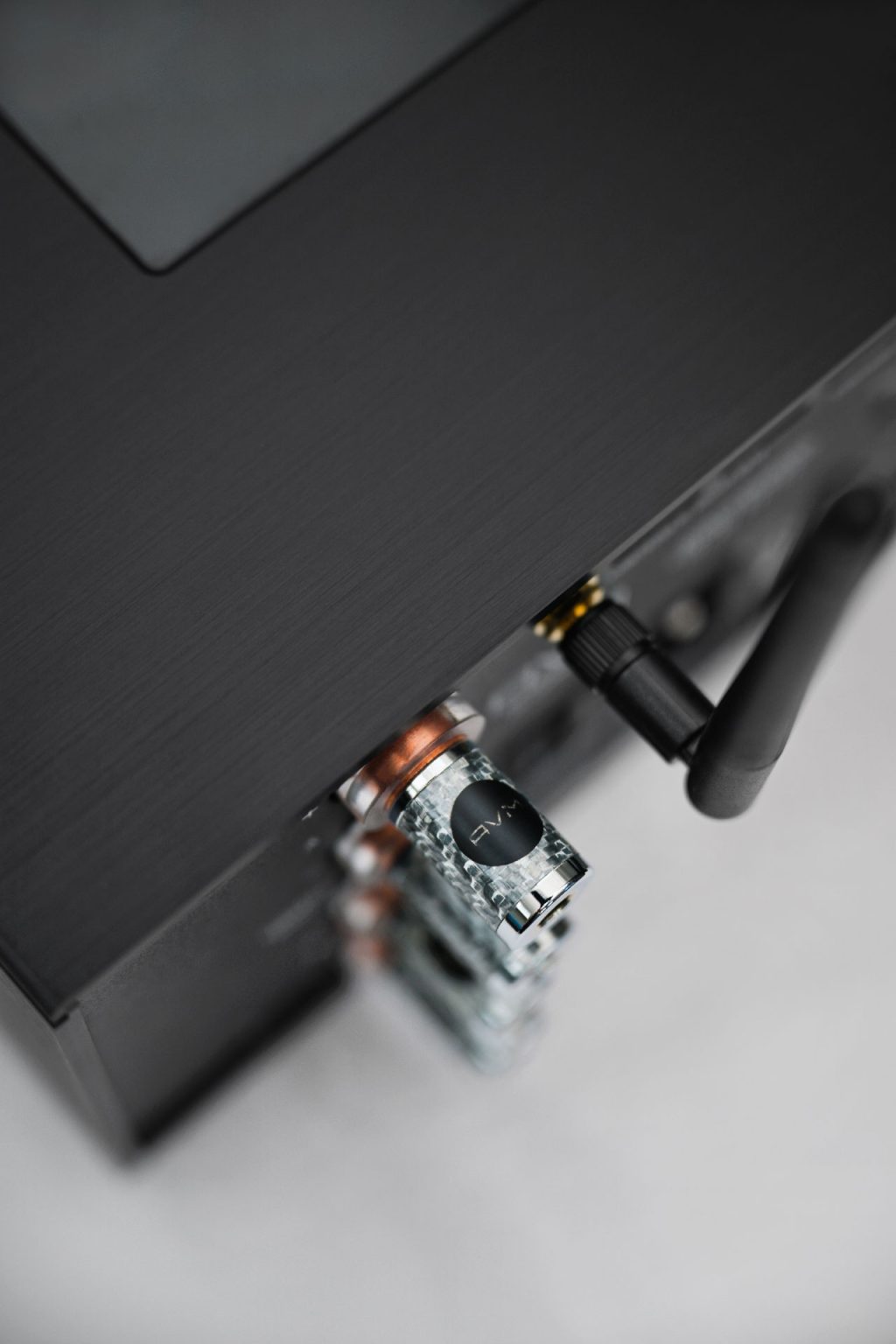

The AVM rhodium speaker terminals, developed exclusively for the Black Edition, provide a permanently stable and exceptionally high-quality connection to the loudspeakers. The optimized silver wiring transports even the finest musical information.
Audibly More Music
Voices gain more body and naturalness, instruments separate more precisely within the soundstage, and fine structures emerge with greater clarity – without losing the musical warmth and coherence that define the Evolution Line. The result is not an artificially spectacular effect, but an audible refinement: more substance, more delicacy, and a closer emotional connection to the recording.

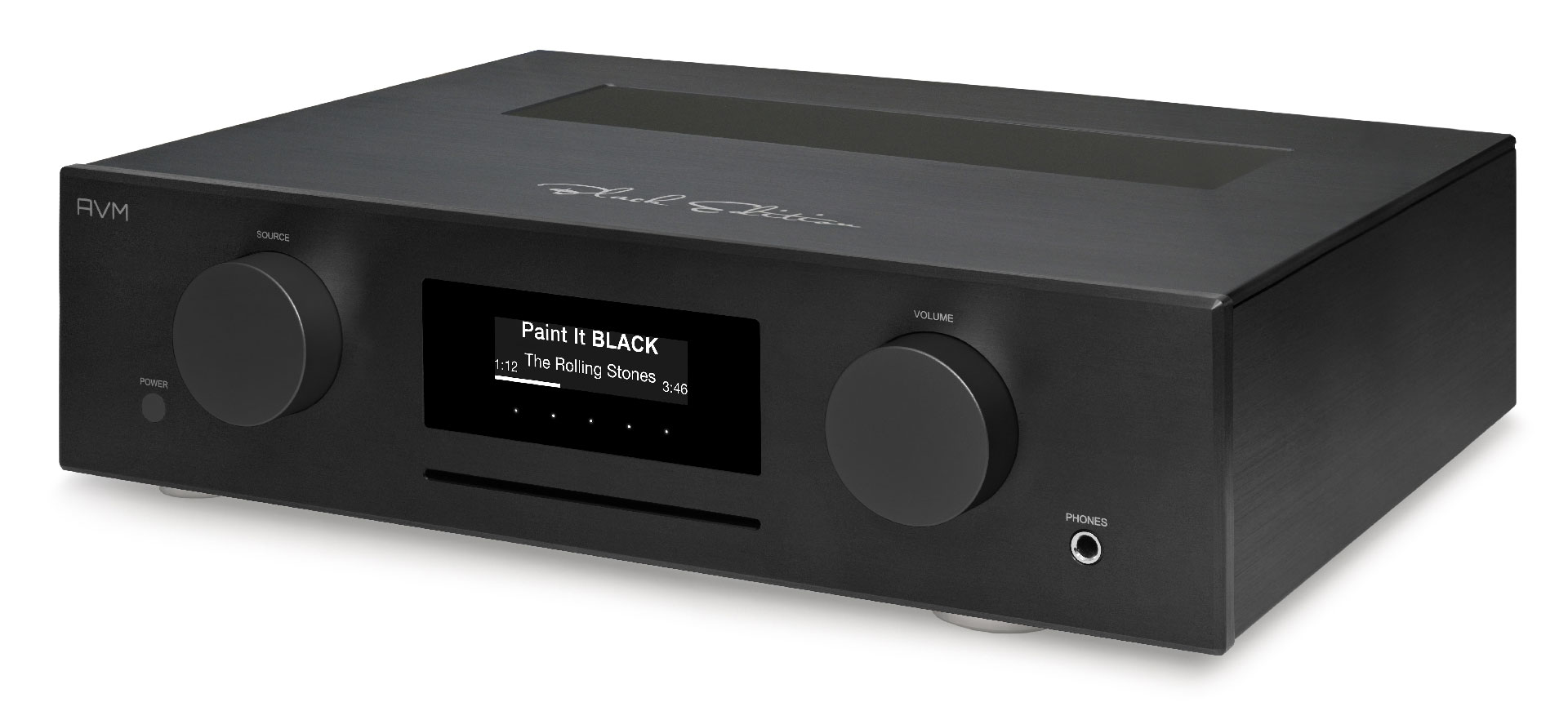

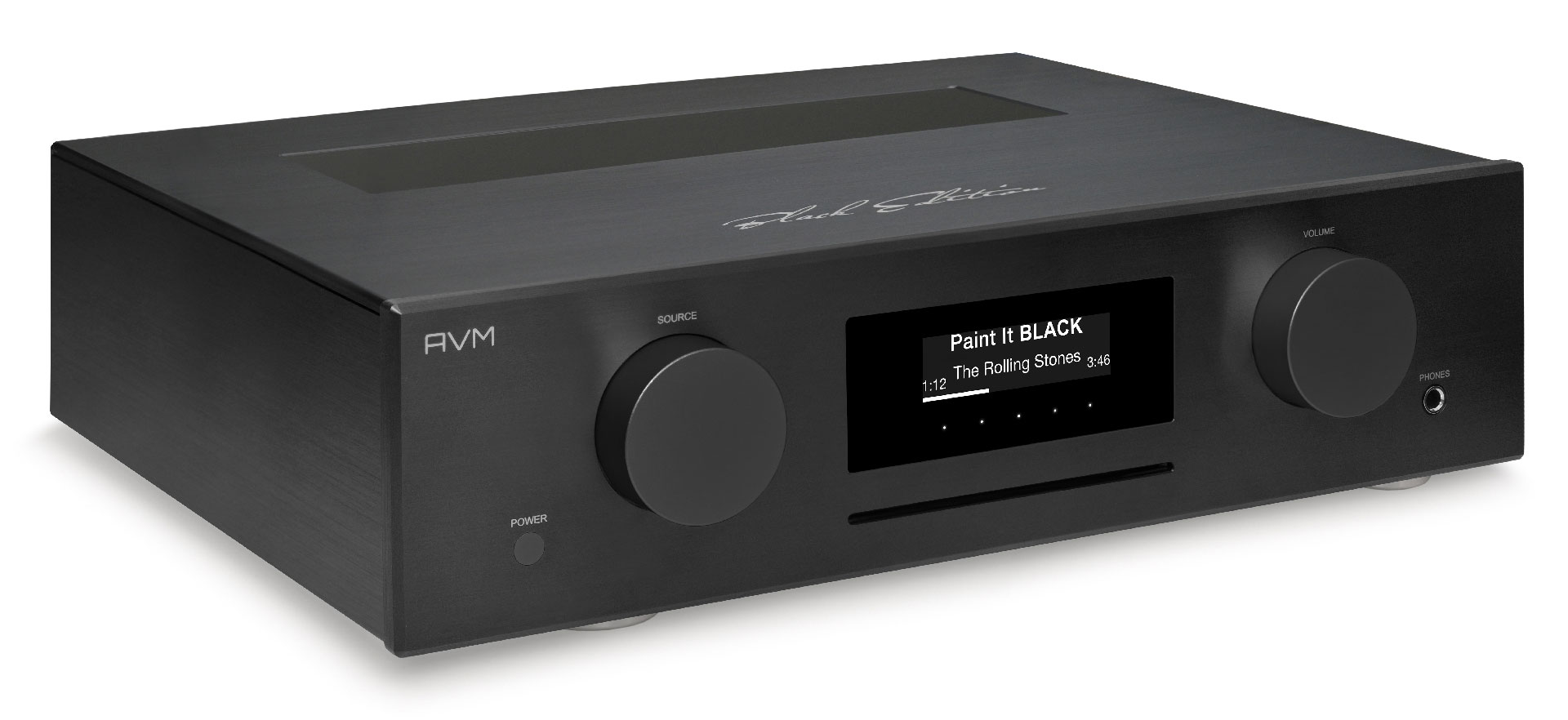

04Design
Completely black.
All control elements in black, BLACK EDITION emblem prominently laser-engraved into the top cover.
05Upgrade path
A Platform That Grows With You
AVM does not develop devices as closed snapshots in time, but as high-quality platforms with deliberately open upgrade paths. Key assemblies can be selectively further developed whenever technological progress provides access to improved components – allowing AVM Masterpieces to mature alongside the expectations of their owners.
Retroactive upgrade
Already own an Evolution .3?
- Available for CS, AS, PAS and MP models of the .3 generation from every production year
- All 5.3 devices since the start of production (with tube module); 3.3 devices are simultaneously upgraded to 5.3 status
- The elaborate conversion is carried out by the factory service department at the manufactory (shipment required)
- The Black Edition emblem is laser-engraved into the existing top cover – the remaining appearance stays untouched; special requests are gladly accommodated
- The standard Evolution .3 Masterpieces (3.3 transistor / 5.3 tube line stage) remain unchanged in the product range; the Black Edition look can be ordered as the custom option „All-Black“
A Commitment to Lasting Value
The Black Edition is far more than a mere technical update: it is a clear commitment to longevity, sustainability, and the lasting value of true manufactory products. Instead of artificially separating generations of devices, AVM elevates existing components to an even higher sonic level – with the combination of technical precision, audiophile passion, and craftsmanship that has distinguished AVM since 1986.
Since1986
06Specifications
Technical data
CS 5.3 BE
01Power amplifierCS / AS only
- Gain
- 30
- THD
- < 0,005%
- Signal-to-noise ratio
- > 95dB
- Input sensitivity (2 × 350 W, 4 Ω)
- 1,2 V
- Output power
- 2x 350W (4Ω) / 2x 180W (8Ω)
02Preamplifieranalogue
- Input impedance (RCA)
- 50 kΩ
- Input impedance (XLR)
- 40 kΩ
- Output impedance (RCA: PRE, LINE)
- 47Ω
- Output impedance (XLR)
- 94Ω
- Gain
- 1
- THD (3.3)
- < 0
- THD (5.3)
- < 0
- Signal-to-noise ratio
- > 100dB
- Crosstalk attenuation (Channels)
- > 94dB
- Crosstalk attenuation (Inputs)
- > 85dB
- Max input level (1% THD)
- 8,4V
- Max output level PRE OUT (1% THD)
- 8,5 V
- Output level LINE OUT
- 2,5 V
- Frequency response at -3dB (3.3)
- < 0Hz to > 100kHz
- Frequency response at -3dB (5.3)
- < 5Hz to > 100kHz
03Headphone amplifier
- Output impedance
- 24Ω
- Gain
- 2,0
- THD
- <0,001%
- Signal-to-noise ratio
- > 100dB
- Max output level (1% THD)
- 7 V
04Phono preamplifierMM / MC
- RIAA equalisation (20Hz-20kHz)
- +/-0,3dB
- Gain MM
- 40dB/ 50dB
- THD MM
- > 84dB(A)
- Gain MC
- 60dB/ 70dB
- THD MC
- >75dB(A)
- Max input level MM (1% THD, 40dB)
- 76 mV
- Max input level MC (1% THD, 60dB)
- 7,4 mV
- Frequency response (Line-Out)
- 11Hz – 100kHz
- Adjustable impedance value MC (in Ω)
- 100; 180; 220; 330; 660; 1k; 2k
- Adjustable impedance value MM (in pF)
- 47; 100; 150; 200; 270; 310; 410
05CD playerCS models only
- Supported formats
- CD Audio, CD-R (according to Red Book standard)
- Frequency response CD
- < 20 – 20 kHz

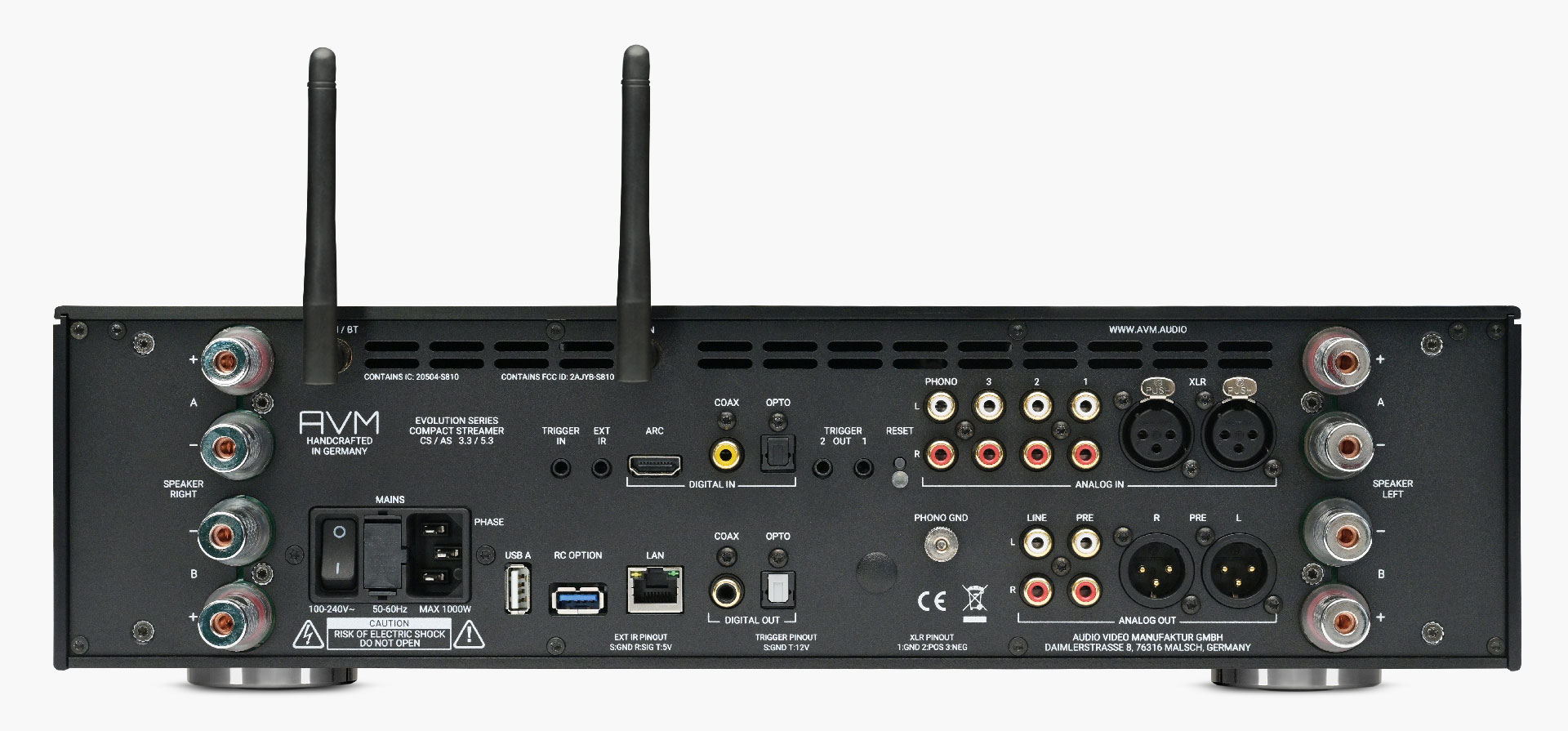

06Network
- LAN-port (Hot Plug)
- 100 Mbit/s
- Supported WLAN / Wi-Fi standards
- 2,4/ 5GHz/ 802.11a/b/g/n/ac
- Number of antennas
- 2
- WPS
- yes
07Streaming
- Max. sampling rate
- DSD256, 32 Bit/384 kHz PCM
- Streaming Services
- AirPlay, Qobuz Connect, Roon, Spotify, TIDAL Connect (MAX), HighResAudio
- Supported file formats
- WAV, MP3, WM, AAC, FLAC, ALAC, DSD, Ogg, AIFF
08Bluetooth
- Bluetooth standard
- 5.0
- Supported Bluetooth profiles
- AVRCP 1.5, AD2P
09USB input
- USB standard
- USB 2.0
- Max. current
- 500 mA
- Supported files
- FAT16, FAT32, NTFS
- Note
- The USB input is only intended for hard drives and USB sticks!
10Digital inputsS/P-DIF · optical / coaxial
- Max. sampling rate (OPTO)
- 96 kHz / 24 Bit
- Max. sampling rate (COAX)
- 192 kHz / 24 Bit
- Min. signal level [Vpp] at 192 kHz (COAX)
- > 150 mVpp
- Input impedance (COAX)
- 75 Ω
- Deemphasis (OPTO, COAX)
- yes, automatic
- Max. sampling / bit rate (ARC)
- 192 kHz / 24 Bit
- Input impedance (ARC)
- 75 Ω
- Note
- When using the digital inputs
11Digital outputsS/P-DIF · optical / coaxial
- Max. sampling rate (OPTO)
- 96 kHz / 24 Bit
- Max. sampling rate (COAX)
- 192 kHz / 24 Bit
- Output impedance (COAX)
- 75 Ω
- Note
- When using the digital outputs
12Control
- Trigger input
- 5 – 20V
- Trigger output (2x)
- 12V (sequentially switched)
- Note
- The second trigger-out is delayed to the first trigger-out to protect against excessive
13Power supplyCS / AS 3.3 · 5.3
- Power supply
- 100V-240V / 50Hz-60Hz
- Power consumption Standby
- < 0,5 Watt
- Power consumption Network standby
- < 2 Watt
- Idle power consumption
- < 25 Watt
- Max. power consumption
- 1000 Watt
- Fuse
- T 10A
14Power supplyPAS 3.3 · 5.3
- Power supply
- 100V-240V / 50Hz-60Hz
- Power consumption Standby
- < 0
- Power consumption Network standby
- < 2 Watt
- Idle power consumption
- < 16 Watt
- Max. power consumption
- 25 Watt
- Fuse
- T 1A
15General
- Weight (CS/AS 3.3/5.3)
- 11 kg
- Weight (PAS 3.3/5.3)
- 8 kg
- Dimensions (WxHxD)
- 430 x 122 x 350 mm
- Warranty
- 2 years + 2 years if you register online
*Warranty periods may vary from country to country.
We reserve the right to make changes to technical specifications and features.
Regulatory Note
Used transmission frequency range
WiFi 2.4 G: 2.412 – 2.472 GHz
WLAN 5: 5,150 – 5,350 GHz / 5,470 – 5,725 GHz
Bluetooth: 2,400 – 2.4835 GH
Maximum transmission power
WLAN 2.4 G: 20 dBm
WLAN 5: 15 dBm
Bluetooth: 6 dB
Notes
⚠ The device is intended for non-commercial use.
⚠ The Ethernet/LAN port may only be connected to the home network (internal building LAN network).
